Application Scope
The Refiner is widely used in the fields of fruit juice beverages, protein beverages, coffee and tea drinks, and biological extraction. It is applicable to the processing of various raw materials, including fruits and vegetables such as tomatoes and strawberries, nuts such as peanuts and almonds, raw materials like coffee beans and tea leaves, as well as traditional Chinese medicinal materials such as ginseng and wolfberries. Through operations like pulping and crushing, it improves the utilization rate of raw materials and the quality of products.
Models and Parameters
Model | Rated Capacity(t/h) | Mesh Size (mm) | Speed (R/M) | Size (mm) | Power (kw) |
CXP-DJ/5 | 5
| 0.4-1.5 | 1470 | 2000*600*1800 | 7.5 |
CXP-DJ/10 | 10 | 0.4-1.5 | 1470 | 2200*650*2300 | 15 |
CXP-DJ/15 | 15 | 0.4-1.5 | 1470 | 2500*650*2300 | 18.5 |
CXP-DJ/20 | 20 | 0.4-1.5 | 1470 | 2600*700*2300 | 22 |
Characteristics

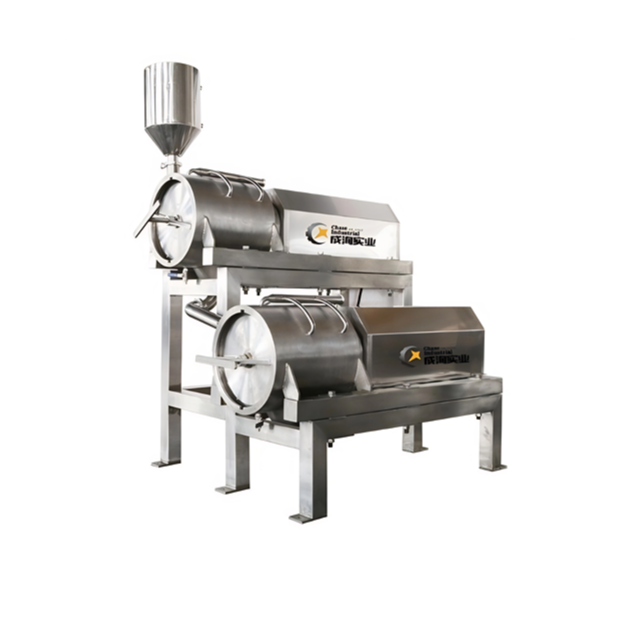

The high - speed Refiner has a high rotational speed and a high juice yield, which can reduce juice loss and improve production line efficiency.
It has a large processing capacity and high efficiency. The production capacity of one unit is equivalent to that of multiple old - model machines.
It features a flexible structure, with the distance between the cutter blades and the screen mesh being adjustable.
Its operating speed can be adjusted by a frequency converter.
The fineness of the juice output can be adjusted according to product requirements, and different screen mesh apertures can be equipped.
