Shanghai Chase supplies tubular sterilizers for continuous heating, holding and cooling of fruit juice, refined puree and other suitable liquid foods. Capacity, temperature, holding time and transfer pump are selected for the product and filling method. CIP cleaning is integrated into the control system, while SIP is included when required by the selected process and downstream connection.

Shanghai Chase Industrial Co., Ltd. is one of the most reliable manufacturers and suppliers of Tubular Sterilizer in China, also supports customized service. Welcome to buy industrial Tubular Sterilizer at competitive price from our factory. For quotation, contact us now.



Tubular sterilizer at a glance

Equipment model
CXP-UHT series; specific model confirmed for the project.
Main duty
Continuous heating, holding and cooling before filling.
Materials
Fruit juice, refined fruit puree, concentrate and other suitable liquid foods.
Processing range
Configured for the product and project; reference units include 2,000 L/h and 4,000 L/h.
Cleaning
Automatic CIP; SIP is available when included in the selected configuration.
Downstream connection
Direct connection to the selected filler or connection through an optional aseptic buffer tank.


Applications and material types

Fruit juice and beverages

NFC juice and prepared liquid products before bulk or retail filling.

Refined fruit puree

Mango, peach, apricot and similar purees after pulping and refining.

Concentrated juice

Concentrated fruit juice that can be pumped through the tubular system.

Other liquid foods

Dairy and formulated liquid products with a matched heating and filling process.



Working principle and process sequence

The product moves through the tubular heat exchanger in a continuous cycle. The system heats it to the set temperature, holds it for the required time and cools it for the next process.

STEP 1

Feed

Transfer the prepared product into the sterilizer.

STEP 2

Heat

Raise the product to the set processing temperature.

STEP 3

Hold

Keep the product at temperature for the set holding time.

STEP 4

Cool and fill

Cool the product and send it to the selected filler.

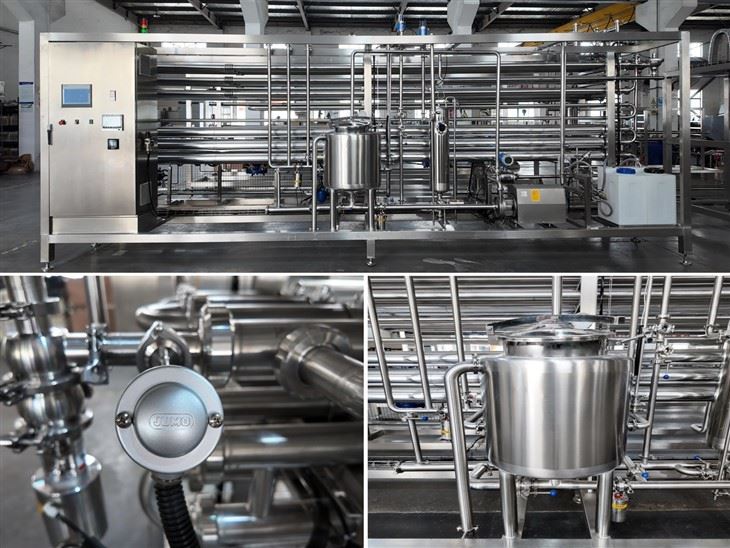

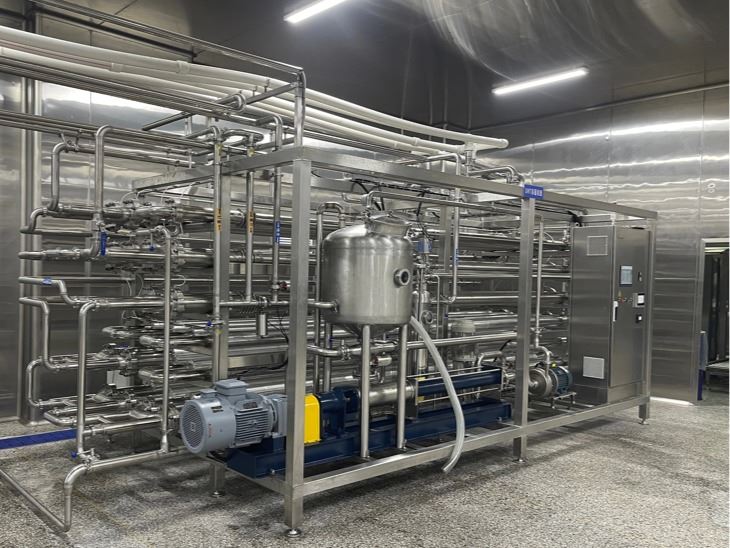

Tubular sterilizer installed in a liquid food processing line

Tubular sterilizer in a processing line

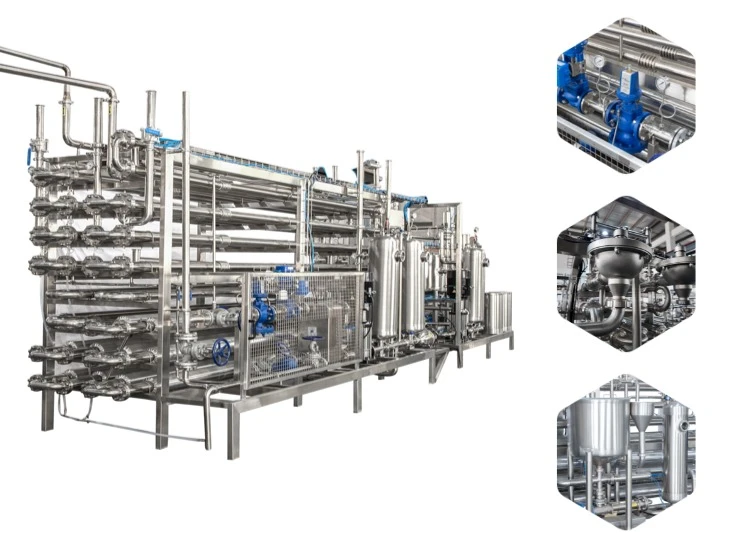

Tubular heat exchanger and sanitary piping

Heat exchanger and sanitary piping

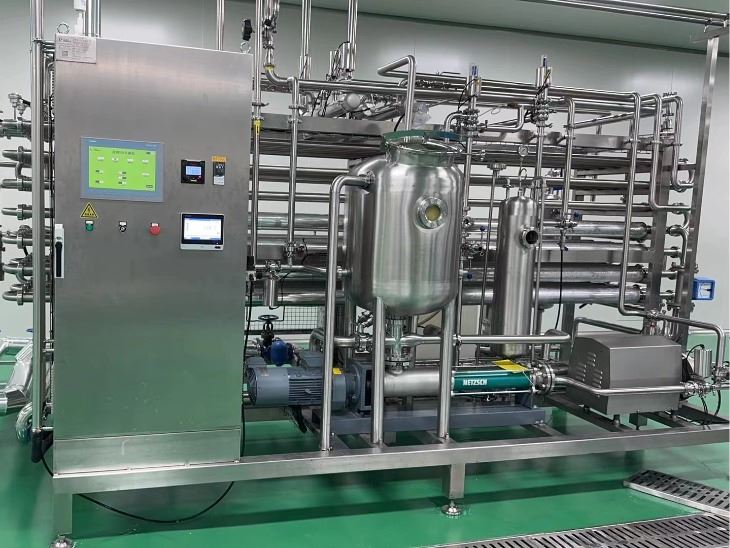

Tubular sterilizer control and process section

Control and process section



Equipment features and configuration

Tubular heat exchanger

The heating, holding and cooling sections form one continuous thermal process.

Automatic temperature control

The control system monitors the process and returns product for recirculation when the set temperature is not reached.

PLC and HMI control

Operators can set and monitor the main process conditions from the control interface.

CIP and optional SIP

CIP cleaning is integrated into the control system. SIP is included when required by the selected process and filling connection.

Product transfer

The transfer pump is selected for the product viscosity, particle size and required flow.

Heat recovery and insulation

The system reuses process heat, while the insulated holding section limits heat loss.



Main technical parameters

Item
Published specification
Processing capacity
Configured for the product and project; reference units include 2,000 L/h and 4,000 L/h.
Processing temperature
Selected according to the product, holding time and required thermal process.
Holding time
Set for the product and thermal process.
Product type
Liquid and semi-liquid products without large particles.
Heat exchanger
Tubular.
Heating medium
Superheated water in a steam-heated water circuit.
Control system
PLC and HMI.
Cleaning and sterilization
Automatic CIP; SIP is available when included in the selected configuration.
Aseptic buffer tank
Optional.

Final equipment settings are listed in the confirmed proposal.



Line connections

Product inlet

Connect the sterilizer to the prepared product tank and sanitary transfer section.

Aseptic filling

Connect directly to the selected aseptic filler when the line arrangement allows.

Buffering

Add an aseptic buffer tank when the process needs intermediate product storage.

Cleaning scope

Coordinate the sterilizer, sanitary piping and filling section in the CIP/SIP sequence.



About Shanghai Chase

Shanghai Chase food processing equipment manufacturing and assembly workshop

Shanghai Chase manufactures food-processing equipment and supplies complete processing lines. Our factory is in Kunshan, Jiangsu, with workshops for machining, assembly and testing.

The factory has CNC machining, welding, polishing and inspection equipment. Our project services include installation and commissioning, followed by spare parts and remote technical support after delivery.

18+ yearsFood-processing equipment experience
8,000 m²Manufacturing and assembly facility
LifetimeTechnical support for supplied equipment


Related equipment and solutions



Frequently asked questions

Is an aseptic buffer tank required?

No. The sterilizer can connect directly to the selected filler, or the line can use an aseptic buffer tank when intermediate storage is needed.

Can the sterilizer process fruit puree?

Yes. It can process refined fruit puree that matches the selected tubular system and product pump.

Can the system connect to different fillers?

Yes. The outlet can be arranged for the selected aseptic or retail filling system.

What information is needed for equipment selection?

Start with the product, planned output and package. Shanghai Chase can then match the thermal process and filling connection.

What is the difference between pasteurization and UHT?

The heating conditions and filling route depend on the product and package. See our pasteurization and UHT selection guide.



Discuss your sterilization and filling section

Share the product, planned output and package. We can prepare the equipment configuration and line connection.
