Spiral Juice Extractor
video
Spiral Juice Extractor

Spiral Juice Extractor

The spiral juice extractor uses screw compression to separate juice from prepared fruit and vegetable material. Four models cover rated capacities from 200 kg/h to 3,000 kg/h.



Spiral juice extractor at a glance

Main duty Press prepared fruit or vegetable material and separate juice from residue.
Feed material Crushed or otherwise prepared fruit and vegetables that can move through a screw press.
Extraction method A rotating screw moves the material through a narrowing chamber and applies pressure.
Adjustment The residue outlet gap changes discharge resistance and pressing pressure.
Outputs Juice passes through the screen while pressed residue leaves through a separate outlet.

Applications and material preparation

Apples and pears

Crushed fruit can enter the extractor after washing, sorting and size reduction.

Pineapple and firm fruit

Prepared pieces or mash can be pressed when their size suits the screw and feed opening.

Vegetable material

Prepared vegetables can be pressed when screw extraction matches the required product.

Fibre-rich materials

Screen condition and discharge resistance need attention when the feed contains more fibre.

Reserved for prepared fruit material or feeding photo
Prepared fruit material
Reserved for vegetable material or screw pressing photo
Vegetable processing application
Reserved for extracted juice and pressed residue photo
Juice and residue after extraction

How the spiral juice extractor works

STEP 1

Feed the prepared material

Crushed fruit or vegetables enter the pressing chamber through the inlet.

STEP 2

Move and compress

The rotating screw moves the material forward and compresses it against the outlet.

STEP 3

Separate the juice

Juice passes through the screen and flows to the collection outlet.

STEP 4

Discharge the residue

Pressed residue leaves through the adjustable outlet at the end of the chamber.

Equipment features and configuration

Progressive screw compression

The screw moves the material through the chamber and applies increasing pressure.

Adjustable residue outlet

The outlet gap changes discharge resistance and pressing pressure.

Screen separation

Juice passes through the screen while solids remain inside the pressing chamber.

Separate discharge paths

Extracted juice and pressed residue leave through different outlets.

Crusher connection

A crusher can feed prepared material directly into the extractor.

Cleaning access

The pressing chamber and product-contact area can be opened for cleaning.

Shanghai Chase industrial spiral juice extractor

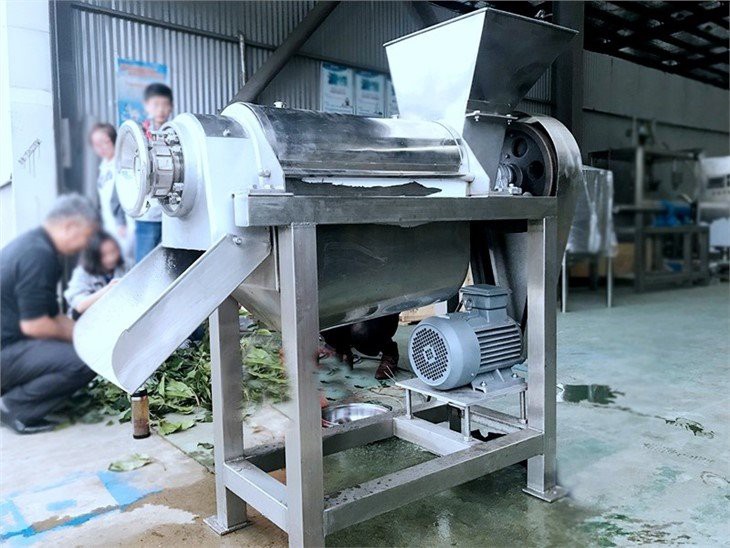

Industrial spiral juice extractor
Spiral juice extractor screw pressing chamber
Screw pressing chamber and drive
Spiral juice extractor juice and residue outlets
Juice and residue outlet arrangement

Available model range

Model Rated capacity Dimensions Power
CXP-ZZ-LX-0.5 (S) 200 to 300 kg/h 730 × 330 × 870 mm 2.2 kW
CXP-ZZ-LX-0.5 (L) 200 to 500 kg/h 890 × 400 × 900 mm 3 kW
CXP-ZZ-LX-1.5 500 to 1,500 kg/h 1260 × 520 × 1400 mm 5.5 kW
CXP-ZZ-LX-3 1,500 to 3,000 kg/h 1950 × 835 × 1680 mm 15 kW

The material and its preparation affect the actual processing rate.

How the spiral press fits into the processing line

STEP 1

Wash and sort

Clean the raw material and remove unsuitable pieces.

STEP 2

Crush and feed

Reduce larger fruit to a suitable size and feed it into the extractor.

STEP 3

Spiral press

Compress the prepared material and separate juice from residue.

STEP 4

Collect the outputs

Send the juice to a tank or the next process and collect the pressed residue.

About Shanghai Chase

Shanghai Chase food processing equipment manufacturing and assembly workshop

Shanghai Chase manufactures food processing equipment and supplies complete processing lines. Our factory is in Kunshan, Jiangsu, with workshops for machining, assembly and testing.

The factory has CNC machining, welding, polishing and inspection equipment. Project services cover installation and commissioning, followed by spare parts and remote technical support after delivery.

18+ yearsFood processing equipment experience
8,000 m²Manufacturing and assembly facility
LifetimeTechnical support for supplied equipment
▤
Our company, team and customer visits
↗
Our company, team and customer visits
▦
Exhibition reports
↗
Exhibition reports
▤
Installation, commissioning and after-sales services
↗
Installation, commissioning and after-sales services

Frequently asked questions

What does a spiral juice extractor do?

It uses a rotating screw to compress prepared fruit or vegetable material and separate juice from pressed residue.

Does the material need to be crushed first?

Larger or firmer raw materials are normally reduced to a suitable size before entering the extractor.

How is the pressing pressure adjusted?

The residue outlet gap changes discharge resistance and the pressure inside the pressing chamber.

Why does the residue outlet setting matter?

A smaller gap increases resistance, but excessive pressure can affect flow, temperature and juice clarity.

How do I choose a model?

The raw material, feed preparation and required processing rate determine the model and line arrangement.

Discuss your juice extraction application

Share the raw material, feed rate and required juice product. We can match the extractor and its upstream preparation.
